Specifiche equipaggiamento per questo prodotto:

- CPU Intel Core i3 5005u
- RAM 4GB
- 128GB SSD
- WiFi 300M 2 antenne

- Graphics: HD5500, supporta risoluzione ultra HD 4K
- sistema operativo Windows 10 Pro ITA

Specifiche Generali

   CPU: Intel® Core™ i3-5005U Processor (3M Cache, 2.00 GHz);

    RAM: Support 2G/4G/8G/16G(2*8G) DDR3L-1333/1600MHz and LPDDR3-1333/1600MHz SODIMM Notebook memory;

    Storage: Support mSATA and SATA SSD; 2.5 inch laptop HDD; Can install 1pc HDD(2.5 inch) and 1pc SSD(mSATA 3.0) together;

    Graphics: HD5500, support ultra HD 4K resolution;

    I/O: Mic; Speaker; 4*USB 3.0 port; 2* USB 2.0 port; 1* RJ45 Gigabit LAN Port; 1*VGA; 1* HDMI; 1* DC12V In;

    Operating System: Windows 7, 8, 10 & Linux Compatible, suggest OpenELEC for less than 16GB SSD, Win7 or Win8 for up to 32GB storage;

    Language: Multi Language;

    USB port: 4* USB 3.0, 2 * USB 2.0;

    Feature: Fanless;

    Wireless: 300M WiFi with dual antennas, Optional;

    Bluetooth: Optional

    HD Out put:  1*HDMI port, support 4k output; 1VGA port, support HDMI+VGA dual display;

    LAN port: 1 Gigabit RJ45 port speed up to 1Gbps;

    Product Size: 174*127*34MM, Silver color Brushed Alloy Case

    Package Content:
    1 * Mini PC device,
    1 * EU/AM/BR/AU standard power adapter,
    1 * Set of SATA power and data cable(for 2.5'' hard drive installation),
    2 * WiFi antennas(white colors default),
    1 * HDMI Cable,
    1 * CD Driver,
    1 * Screws bag,
    1 * Warranty Card,

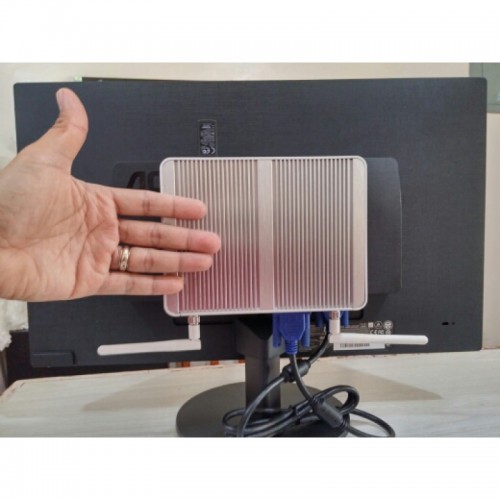

    1 * VESA Mount(optional)

Windows Thin Client PC M3-5005U Power and Working Environment:

    Input: DC100-240V AC/50-60Hz

    Output: DC 12V~3A/5A

    Operating Temperature: 0/70 Centigrade(32F~140F)

    Storage Temperature: -20/+85 Centigrade

    Relative Humidity: 0%~90% (non-condensing)

    Energy-saving: Support Energy-saving technology, Speedstep

    64 bit computing: Support 64 bit computing

    Virtualization: Support Virtualization technology

    Hyper-threading: Support Hyper-Threading

    Product Dimension & Details

    Consumption: 15W~28W

Windows Thin Client PC M3-5005U Graphics Specifications:

    Processor Graphics: Intel® HD Graphics 5500

    Graphics Base Frequency: 300 MHz

    Graphics Max Dynamic Frequency: 850 MHz

    DirectX* Support: 11.2

    OpenGL* Support: 4.3

    Intel® Quick Sync Video

    Intel® InTru™ 3D Technology

    Intel® Flexible Display Interface (Intel® FDI)

    Intel® Clear Video HD Technology

    Intel® Clear Video Technology

    Intel® Wireless Display

    Intel® Insider™


Windows Thin Client PC M3-5005U Advanced Technologies

    Intel® Hyper-Threading Technology

    Intel® Virtualization Technology (VT-x)

    Intel® Virtualization Technology for Directed I/O (VT-d)

    Intel® VT-x with Extended Page Tables (EPT)

    Intel® 64

    Idle States

    Enhanced Intel SpeedStep® Technology

    Thermal Monitoring Technologies

    Intel® Fast Memory Access

    Intel® Flex Memory Access

    Intel® Identity Protection Technology

    Intel® Small Business Advantage

    Intel® Smart Response Technology

    Windows Thin Client PC M3-5005U Specifications:

General

CPU

Onboard Intel Core i3-5005U 2.0GHz Dual Core Four Thread processor

Core (FSB)

100MHz

CPU Technique

14nm

L3 Cache

3MB Cache, CPU Integrated

BOIS

AMI BIOS, ACPI supported

Support calls on function automatically

Support Wake-On-LAN

Chipset

Intel SHARKBAY

Memory


1* SO-DIMM DDR3L Slot

Support 2GB/4GB/8GB

DDR3L-1600, DD3L-1333, LPDDR3-1600, LPDDR3-1333

Storage

SSD: 8G/16G/32G/64G/128G/256G/512G/1TB

HDD: 160G/320G/500G/1TB

Operating System

Windows 7/Windows 8/Windows 10/Linux

Audio

ALC662 sound chip, 6-channel

Intel Panther Point HDA

Network

Onboard Realtek RTL8168E PCI-E Gigabit Ethernet NIC

10/100Mbps/1000Mbps BaseT LAN

Video

Intel HD Graphics 5500

I/O port

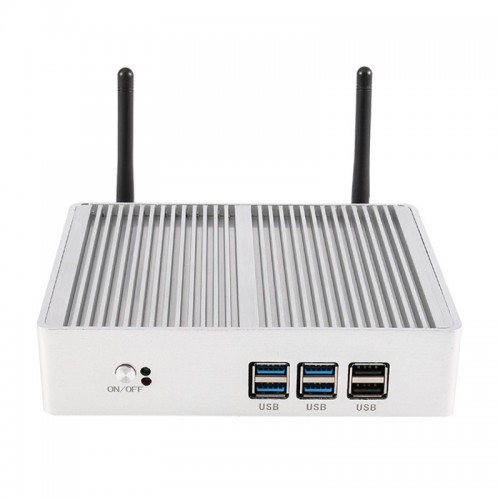

front panel ports


2*USB2.0, 4*USB3.0, 1* Power indicator and switch

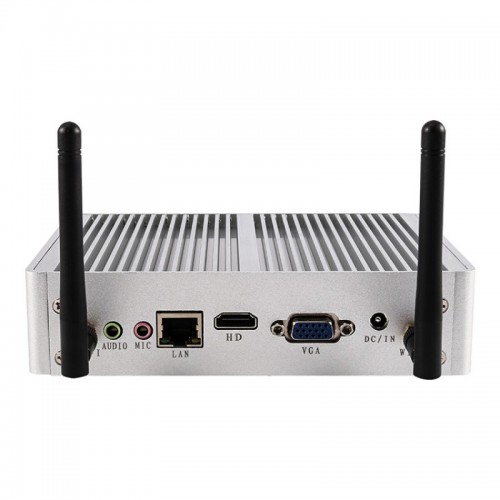

Backside ports

1*HDMI, 1*VGA, 1*LAN, 1*MIC, 1*SPK, 2*WiFi antennas

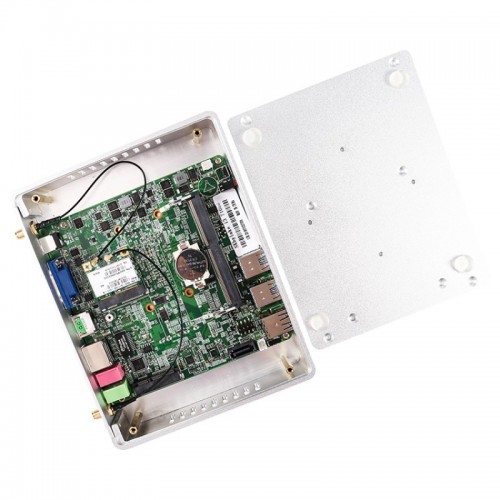

Internal ports

1*M-SATA3.0 port, support 6Gb/s

1*SATA3.0 port, support 6Gb/s

1*mini-PCIE port(WIFI&Bluetooth)

Power and Working Environment

Input

DC100-240V AC/50-60Hz

Output

DC 12V~19V/5A

Operating Temperature

0/70 Centigrade(32F~140F)

Storage Temperature

-20/+85 Centigrade

Relative Humidity

0%~90% (non-condensing)

Energy-saving

Support Energy-saving technology, Speedstep

64 bit computing

Support 64 bit computing

Virtualization

Intel VT-x
